Description

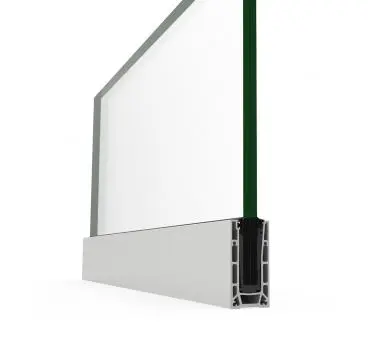

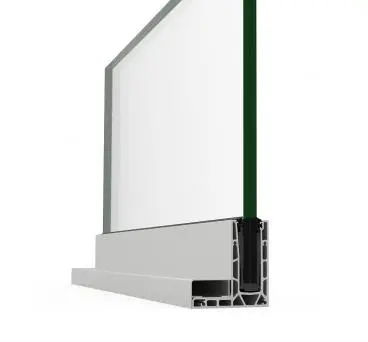

The View Crystal Fit Plus railing incorporates adjustable shims that help reduce installation time on site and facilitate glass alignment.

» View Crystal Fit Plus 1.0 kN/m – 3.0 kN/m Withstands loads of up to 3.0 kN/m. Suitable for use in zones A, B, C, D, E, and F as specified in CTE DB SE-AE, and zones A, B, C, D, and E according to Eurocode 1.

» Possibilities
Over slab assembly Flush over slab assembly Edge slab assembly Edge invested slab assembly

» Maximum height
1100 mm

» Glazing
This balustrade system allows 12 possibilities of glazing: double glass of 10, 8 or 6 joined by up to 4 polyvinyl butyrals of 0.38 mm. Tempered glass is recommended.

» Type laminated compositions
10-1,52-10 / 10-1,14-10 / 10-0,76-10 / 10-0,38-10
8-1,52-8 / 8-1,14-8 / 8-0,76-8 / 8-0,38-8
6-1,52-6 / 6-1,14-6 / 6-0,76-6 / 6-0,38-6
