Description

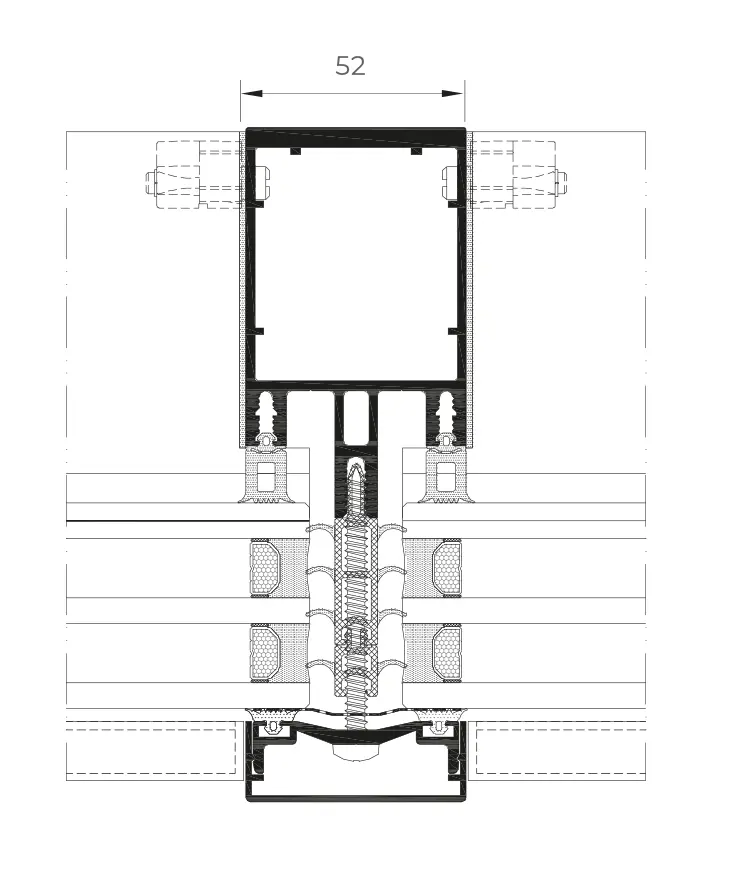

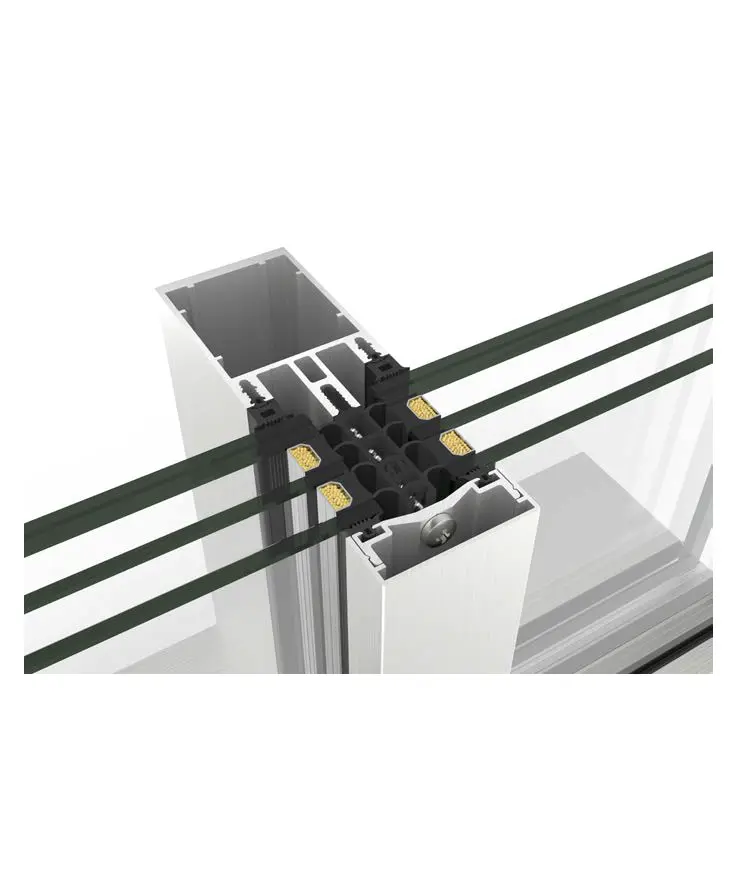

Curtain wall system composed of 52 mm mullions and transoms forming the load-bearing structure. The glass is fixed on all four sides by means of a continuous pressure profile screwed from the outside to screw ports incorporated in the mullions and transoms, with the entire fixing system concealed beneath a decorative cover cap with a visible section of 52 mm.
FEATURES
- Thermal transmittance – Ucw ≥ 0.6 (W/m²K)
- Air permeability – Class AE
- Water tightness – Class RE1350
- Wind resistance* – QUALIFIED
- Reference test AEV 3.00 x 3.50 m British certification CWCT
- * Design load 2000 Pa – Safety load 3000 Pa
