Description

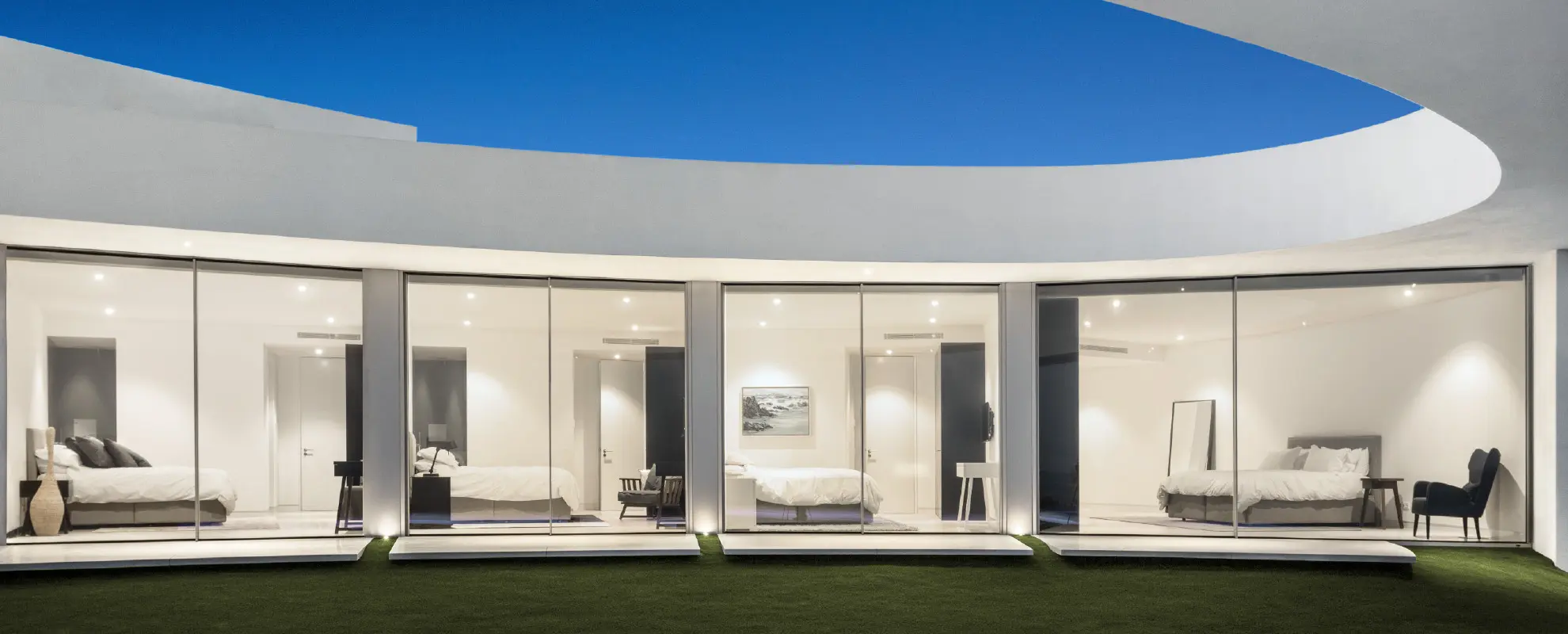

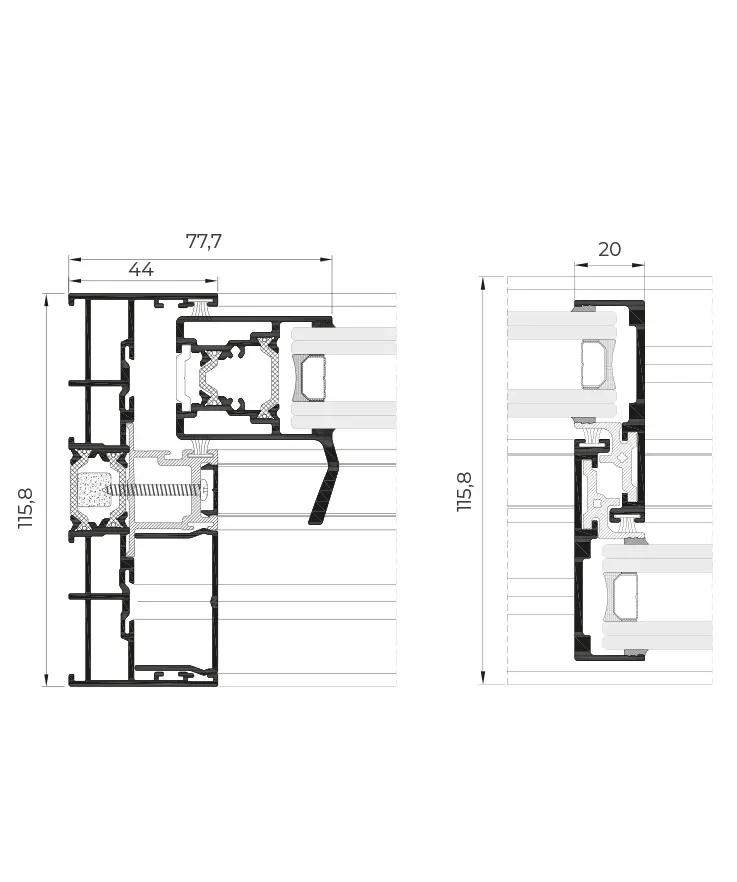

Minimalist sliding system with thermal break that provides maximum brightness with the minimum visible aluminium section. It features an elegant design with a central junction of only 20 mm and offers the possibility of concealing the frame around the perimeter.
Central junction locking option that allows the sashes to be hidden within the frame from a front view.

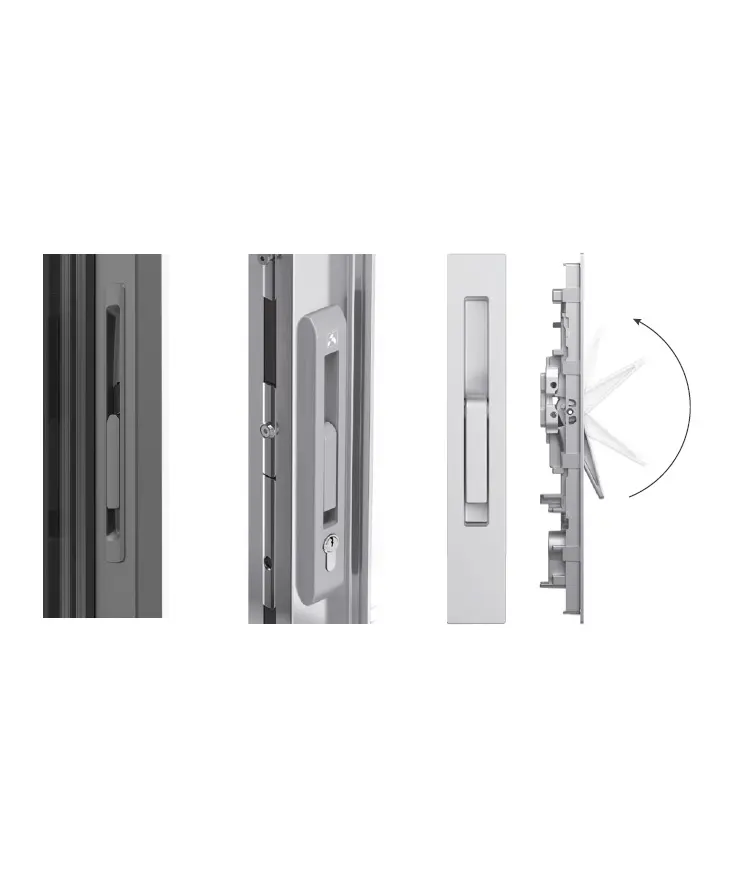

Option of concealed locking that facilitates the crossing of the sashes.
FEATURES
- Thermal transmittance – Uw ≥ 1.3 (W/m²K)
- Acoustic insulation – Rw up to 41 dB
- Air permeability – Class 4
- Water tightness – Class 7A
- Wind resistance – Class C5
- Reference test AEV 1.23 x 1.55 m / 1 sash + 1 fixed
