Description

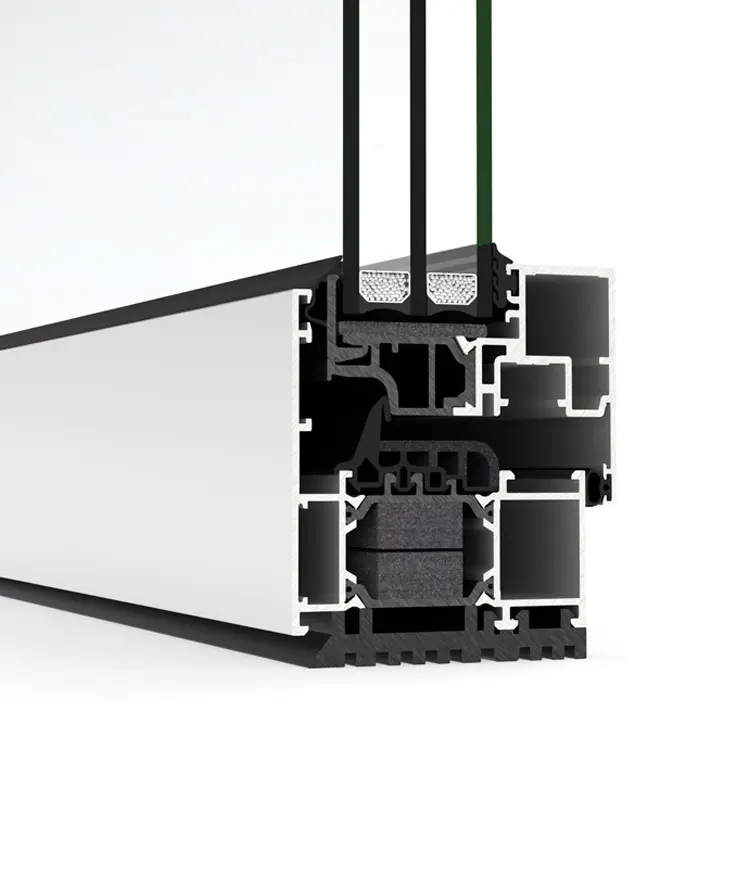

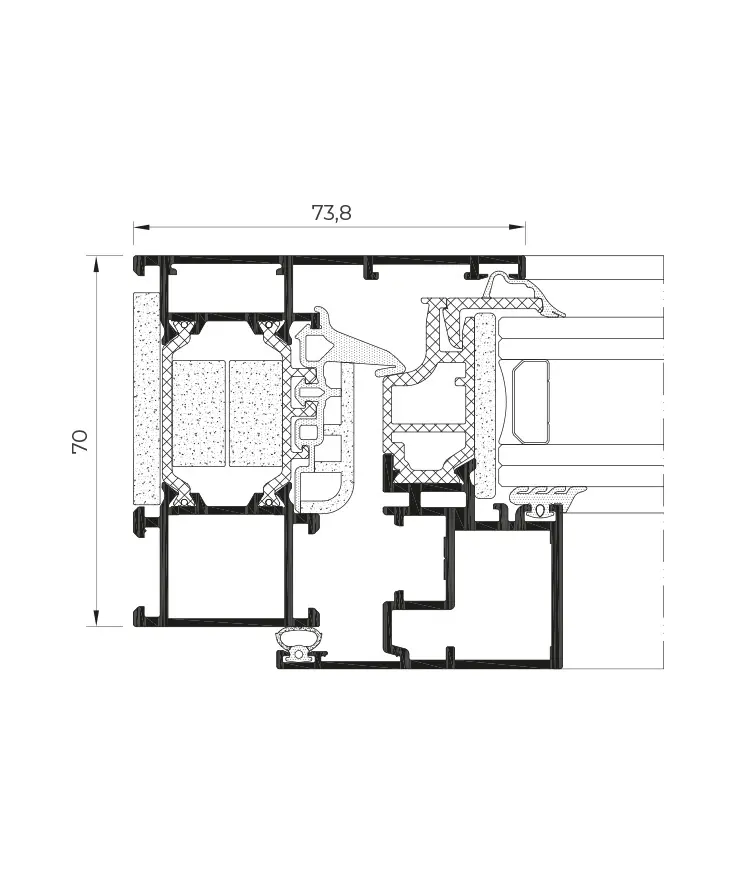

Concealed sash hinged system compatible with any standard Channel 16 hardware. The sash is hidden behind the frame, reducing the visible aluminium section to 73.8 mm. This achieves a glazed surface of up to 85% of the window’s total glass, bringing more daylight indoors. Its avant-garde look can be completed with concealed drainage and concealed hinges.
FEATURES
- Thermal transmittance – Uw ≥ 0.93 (W/m²K)
- Acoustic insulation – Rw up to 45 dB
- Air permeability – Class 4
- Watertightness – Class E1200
- Wind resistance – Class C5
- Reference AEV test 1.23 × 1.48 m / 2 sashes
- CSTB laboratory DTA certification
